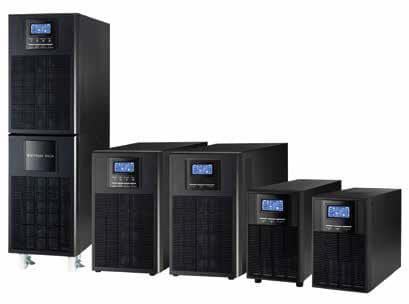

TEOS 100 UPS SERIES
• True double-conversion
• Microprocessor control optimizes reliability
• Input power factor correction
• Output power factor 0.9
• Wide input voltage
• Converter mode available
• ECO mode for energy saving (Only available for 1-3kVA models)
• Generator compatible
• Adjustable battery numbers only available for 6/10kVA models
• Adjustable charging current via LCD or software (1A~ 6A) only available for 6/10kVA models
• Emergency power off (EPO) function is only available for 6/10kVA models
• Comprehensive display allows easy monitoring and access to UPS status
| MODEL | TEOS 1000 | TEOS 2000 | TEOS 3000 | TEOS 106 | TEOS 110 | |
| Rated Power | 1000VA/900W | 2000VA/1800W | 3000VA/2700W | 6000VA/5400W | 10000VA/9000W | |
| Nominal Voltage | 100/110/115/120/127VAC or 200/208/220/230/240VAC | 208/220/230/240VAC | ||||
| Power factor | ≥ 0.99 @ Nominal Voltage (100% load) | |||||
| Frequency range | 40-70 Hz (50/60 Auto-sense) | 46~54Hz or 56~64Hz | ||||
| OUTPUT | ||||||
| Voltage Regulation | ±1% | |||||
| Frequency range | 47~ 53 Hz or 57 ~ 63 Hz (Synchronized Range) 50 Hz or 60Hz ± 0.5% (Batt. Mode) | 46~54 Hz or 56~64 Hz (Synchronized Range) 50 Hz or 60Hz ± 0.1 Hz (Batt. Mode) | ||||
| Harmonic distortion | ≤ 3 % THD (Linear Load) ≤ 6 % THD (Non-linear Load) | ≤ 3 % THD (Linear Load) ≤ 5 % THD (Non-linear Load) | ||||
| Current Crest Ratio | 3:1 | |||||
| Waveform (Batt. mode) | Pure Sinewave | |||||
| EFFICIENCY | ||||||
| AC mode | 88% | 89% | 90% | 92% | 93% | |
| Battery mode | 83% | 85% | 88% | 90% | 91% | |
| BATTERY | ||||||
| Battery type | 12V / 9AH | |||||
| Numbers | 2 | 4 | 6 | 16-20 | 16-20 | |
| Typical recharge time | 4 hours recover to 90% capacity | 9 hours recover to 90% capacity | ||||
| DISPLAY | ||||||
| LCD | Load level, Battery level, AC mode, Battery mode, Bypass mode, and Fault indicators | |||||
| COMMUNICATION | ||||||
| Optional SNMP | Power management from SNMP manager and web browser | |||||
| PHYSICS CHARACTERISTIC | ||||||
| Dimensions (mm) HxWxD | 220x145x282 | 220x145x397 | 318x190x421 | 688x190x369 - 688x190x442 | 688x190x442 | |
| Net weight (kg) | 9.8 | 17 | 27.6 | 61 - 74 | 66 - 76 | |
| ENVIRONMENT | ||||||
| Humidity | 20-90 % RH @ 0- 40°C (non-condensing) | 0-95% RH @ 0-40°C (non-condensing) | ||||
| Acoustic noise | Less than 50dBA @ 1 Meter | Less than 55dBA @ 1 Meter Less than 58dBA @ 1 Meter | ||||
